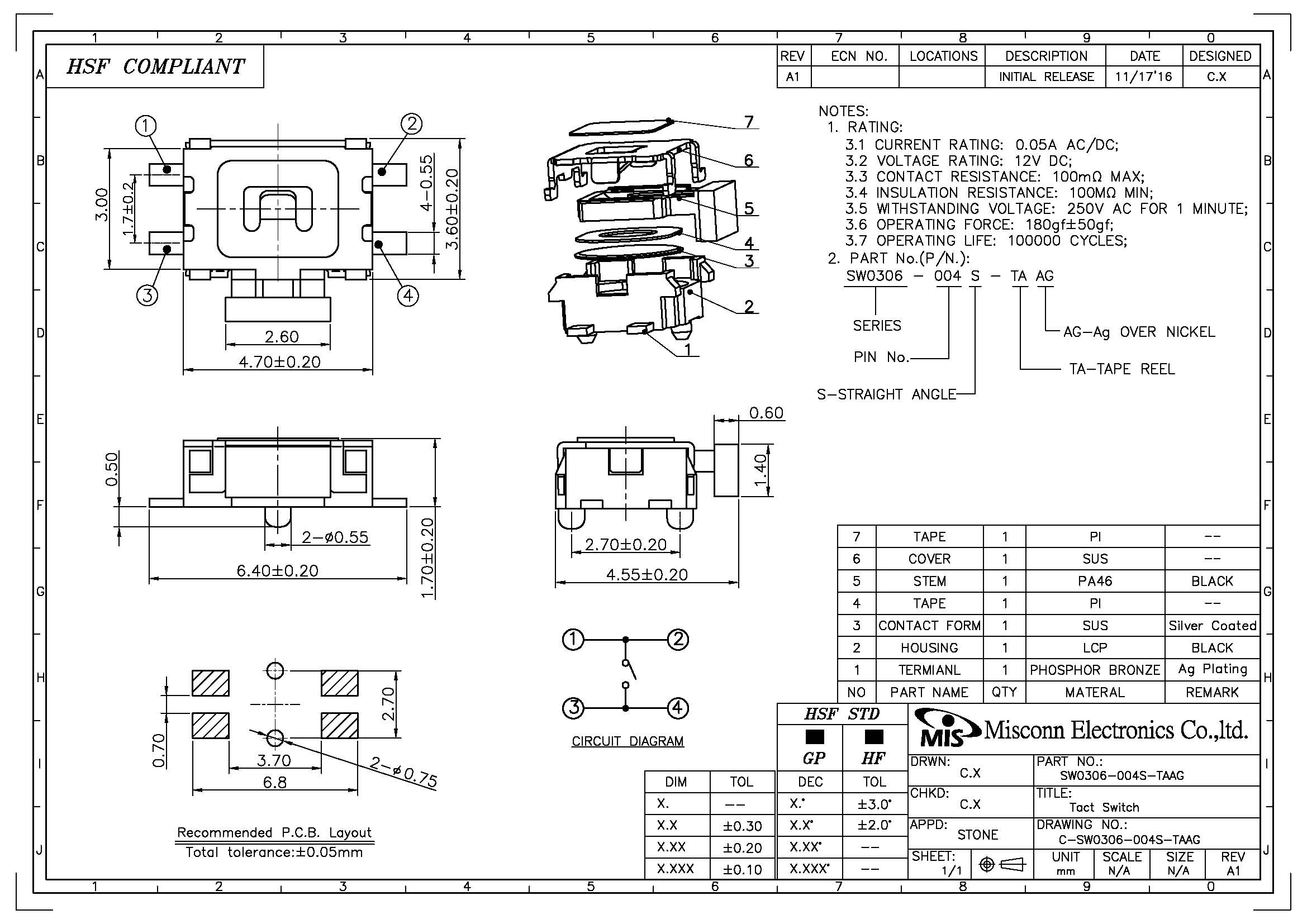

P/N: SW0306-004S-TAAG
Pitch: 1.70 mm
Height: 1.70 mm
Number of contacts:04
Type: SMT
Electrical
Current Rating: 0.05A
Voltage Rating: 12V
Contact Resistance: 100mΩ
Withstanding Voltage: 250V AC/1min
Insulator Resistance: 100MΩ
Material
Tape: PI
Cover: SUS
Stem: PA46
Tape: PI
Contact: SUS
Housing: LCP
Terminal: PHOSPHOR BRONZE
