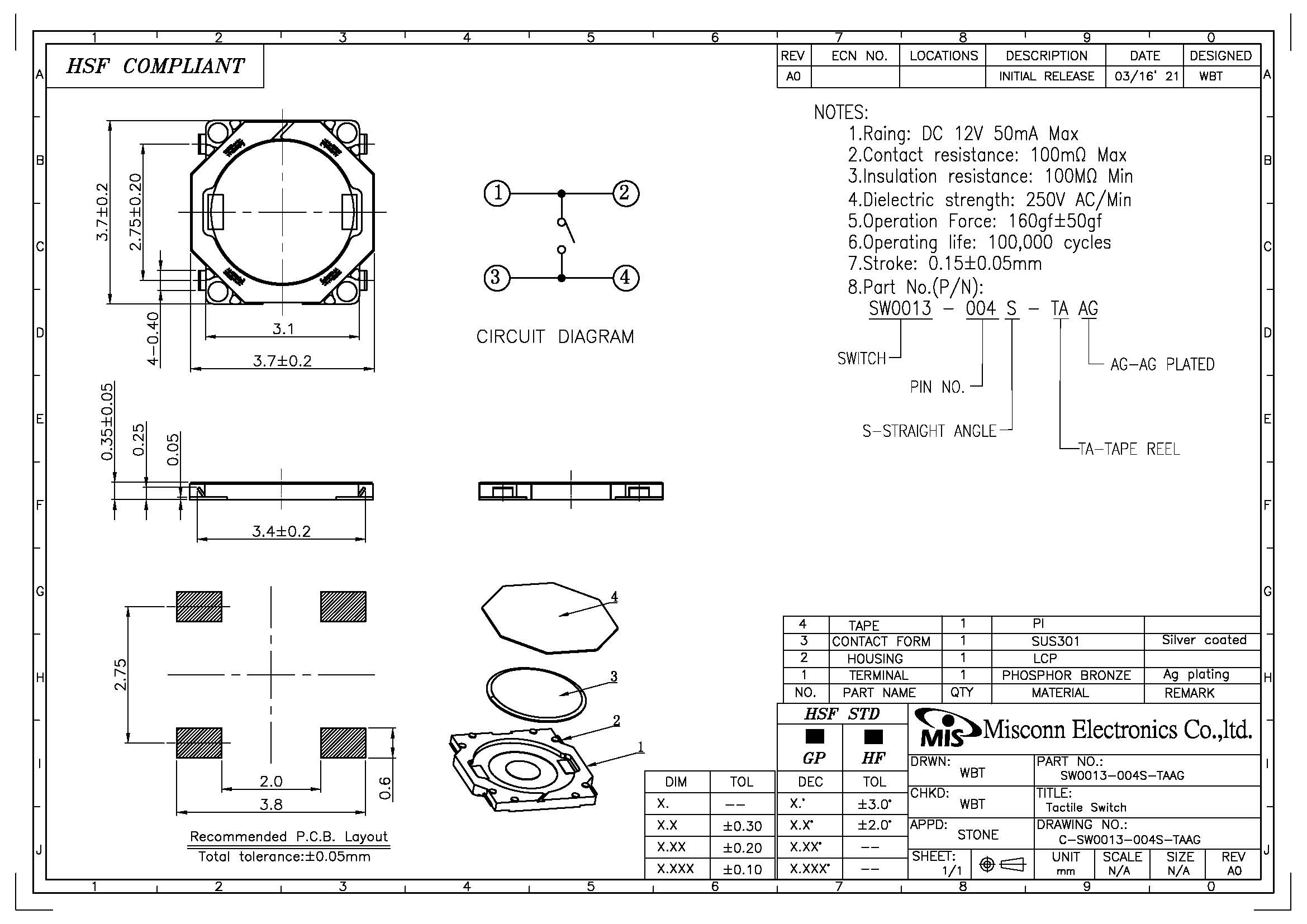

P/N: SW0013-004S-TAAG
Pitch: 2.75 mm
Height: 0.35 mm
Number of contacts:04
Type: SMT
Electrical
Current Rating: 0.05A
Voltage Rating: 12V
Contact Resistance: 100mΩ
Withstanding Voltage: 250V AC/1min
Insulator Resistance: 100MΩ
Material
TAPE: PI
Contact: Copper Alloy
Housing: LCP
Terminal: Copper Alloy
