P/N：FP0505-0XXR-TAXX
Pitch：0.50 mm
Height：1.00 mm
Type： Front-Flip
Angle：Right Angle
Number of contacts：4/5/6/8/10/12/14/15/16/18/20/22/24/28/30/32/40/43/45/50
Electrical
Current Rating: 0.5A
Voltage Rating: 50V
Contact Resistance: 40mΩ
Withstanding Voltage: 500V/1min
Insulator Resistance: 50MΩ
Material
Housing: High-Temp Plastic UL94-V0
Terminal: Copper Alloy
Peg： Copper Alloy
档案下载

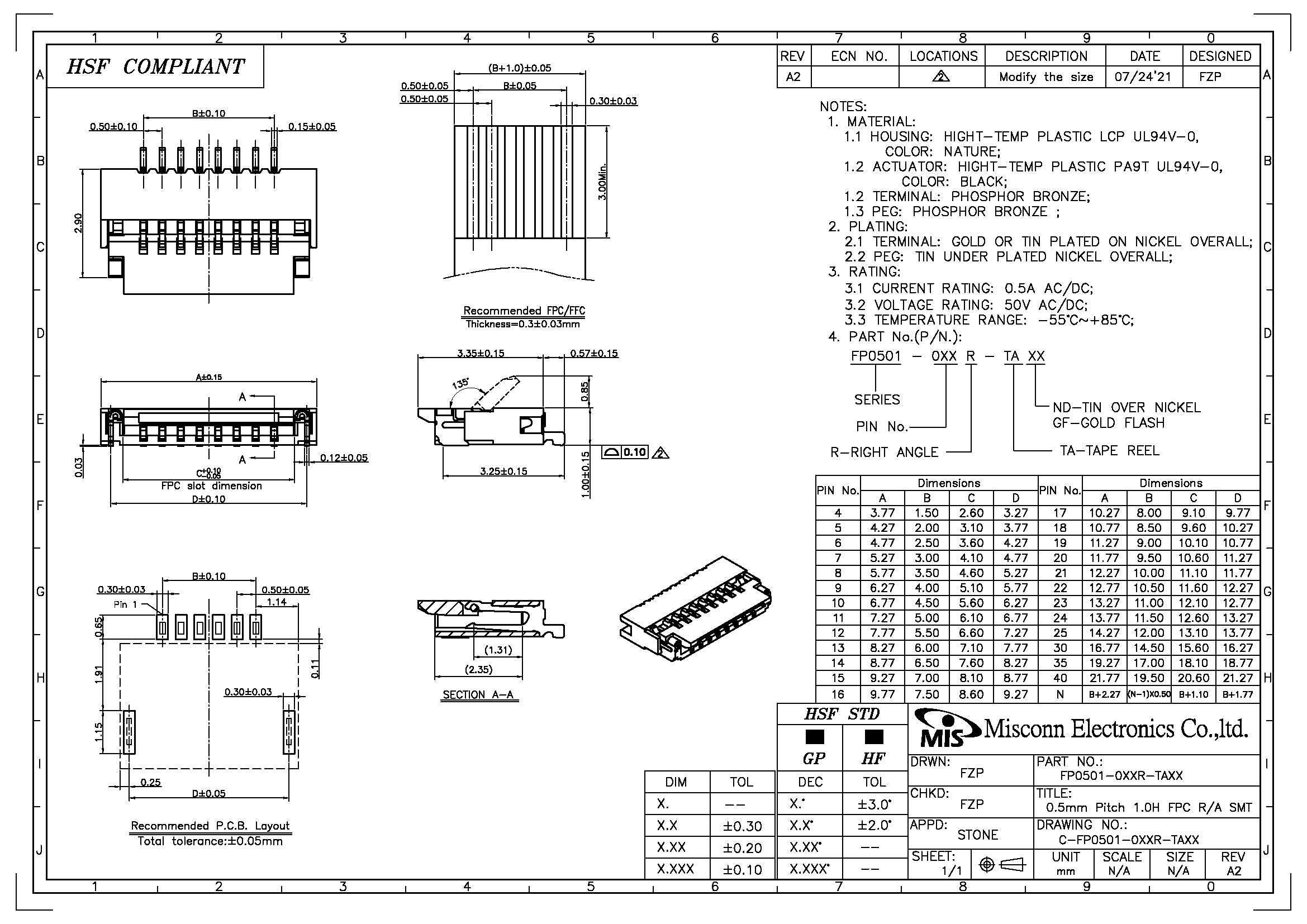

2D
SPEC
3D
